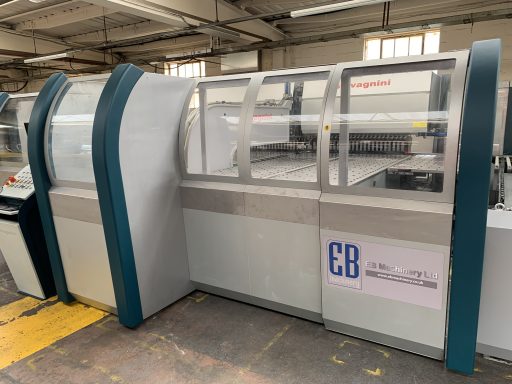

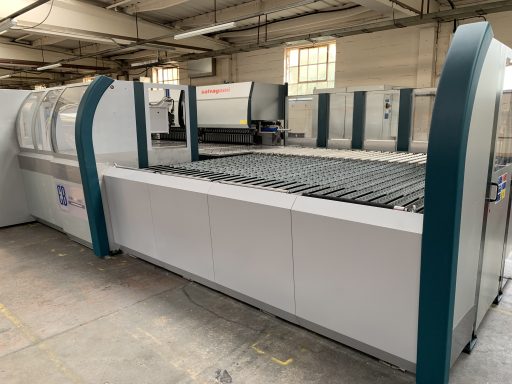

Salvagnini P4.3216ABA Automated Panel Bending System
Salvagnini P4.3216 Automatic Panel Bender (in stock at EB Factory ready May 23)
PCD auto loader, stack table (SAP) unloader – rare 3,200mm ABT version with Heavy duty tooling and has ABA fully automatic tool change fitted to allow zero setup time, twin CLA tag bending option and RBU blank cleaning system amongst other options.
Blank-holder, counter-blade refurbished and 2 x new bending blades. New 2023 control PC Full installation and training package 12 month parts and labour warranty.
Specification
| Max bending length | 3200mm |
| Max width of finished Panel | 1500mm |
| Max Diagonal of incoming sheet | 3500mm |
| Max length of incoming blank | 3500mm |
| Max width of the blank | 1510mm |
| Max bend height | 168mm |
| Max thickness of mild steel | 3.0mm |
| Max thickness of Stainless Steel | 2.0mm |
| Bending angles obtainable | -135 Deg to +135 Deg |
| Total system weight | Approx 28,000kg |
| Electrical rating | 24KW |
| Air consumption | 20 l/Min |
| Hydraulic oil capacity | 600 litres |
Configuration
TC30155F.CT.RPC+PCD3015.RVA+P4.3216.LSR1.LIR.ABA25/400/140/S.CLA.A.UC1000V+SAP341618.POS+R51E.SIX.nt
Key
| TC30155F.CT.RPC | Scissor Table 3000 x 1500mm, 3 ton pack capacity |
| PCD3015.RVA | Automatic Sheet Feeder |
| P4.3216 | Servo-controlled Panel bender |
| LSR1 | Upper Bending Blade (Heavy Duty) |
| LIR | Lower Bending Blade (Heavy Duty) |
| ABA25/400/140 | Automatic Blank-holder Adjustment* |
| CLA | Tab bending Unit |
| UC1000 | 1000mm of tab bending tooling allowed on CLA trolleys |
| SAP341618.POS | Panel unloader and tilting table (allows multiple panel unloading prior to operator intervention) |
| Six.nt. | Machine control. |
| R51E | Chiller |
