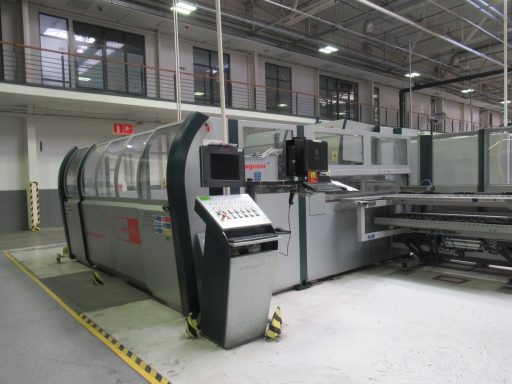

Salvagnini P4 1916 Auto Panel bender
P4 Panel Bender 1916ABT – YOM2007,In stock at EB factory being refurbished ready July/Aug 23.
Advanced ABT Six control system, ABA Fully Automatic tool change (zero setup time and kit production capable) HPT Loader, LSI/LIA blades, rad software, new control computer with latest software. Option P with embossing cover plates fitted to allow preforms up to 10mm from the edges of parts. Negative and Positive CLA Assymetric tab bending option. Very rare HPT 1916 with full auto options. Fully refurbished tooling to bend as new.

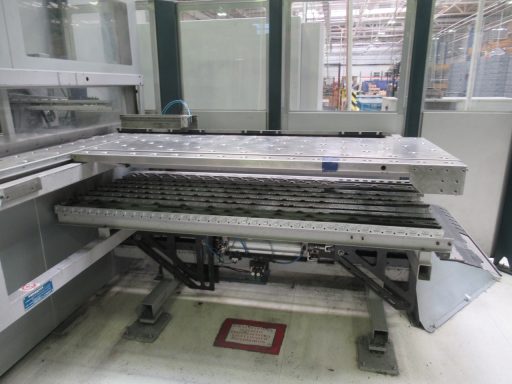

This machine has all the usual ABT P4 refinements, with ultra fast ABA automatic tool change, allowing kit production and zero setup time. Fast HPT loader, automatic fast loading/unloading of the blank/panel with transport sledge, Option P for special profiles or radius panels without marks. Fitted with both Positive and negative Asymmetric CLA!- Machine will have fully refurbished tooling and 12months warranty.
Delivery: Machine will be ready for delivery from July/August 2023 onwards.
Specification
| Max bending length | 1960mm |
| Max width of finished Panel | 1500mm |
| Max Diagonal of incoming sheet | 2350mm |
| Max length of incoming blank | 2220mm |
| Max width of the blank | 1510mm |
| Max bend height | 167mm |
| Max thickness of material at 400 N/mm2 (m/s) | 2.5mm |
| Bending angles obtainable | -130 Deg to +130 Deg |
| Total system weight | Approx 16,000kg |
| Air requirements | 6 Bar |
| Electrical rating | 24KW |
| Water consumption | 20l/Min |
| Hydraulic oil capacity | 600 litres |
