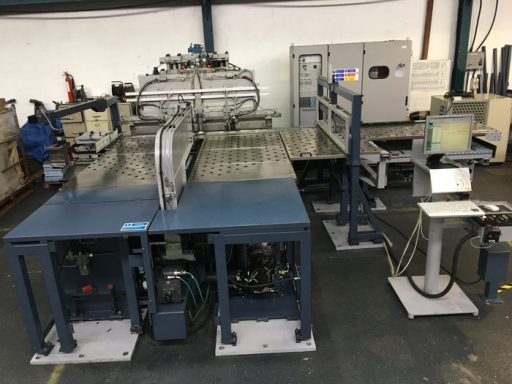

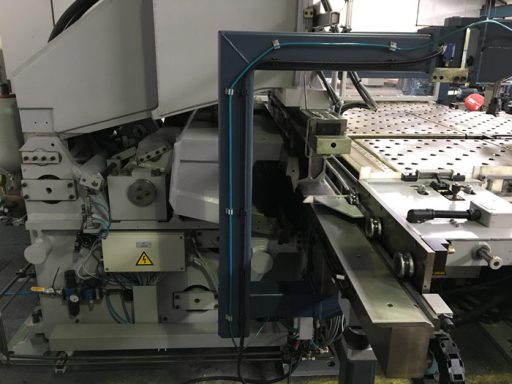

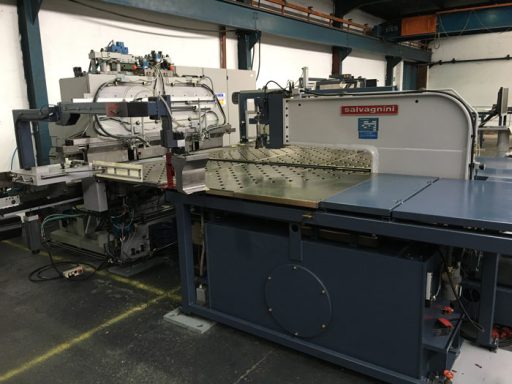

Salvagnini P4.1712 Panel Bender
This machine has extended bending capability to 1960mm length. Very low clock hours.
A great machine for sub-contractor and OEM alike.
P4.1712 with MLA Blankholder and UC1000/2 CLA option for tab bending
Specification
| Max bending length | 1960mm |
| Max width of finished Panel | 1500mm |
| Max Diagonal of incoming sheet | 2150mm |
| Max length of incoming blank | 2000mm |
| Max width of the blank | 1510mm |
| Max bend height | 127mm |
| Max thickness of material at 400 N/mm2 (m/s) | 2mm |
| Bending angles obtainable | -125 Deg to +125 Deg |
Configuration
P4.1712.LSA.LIA.MLA.SH.SCDV.RC.CLA.UC1000/2.HPT2015+R51
Key
| P4.1712 | Servo-controlled panel bender |
| LSA | Upper Bending blade |
| LIA | Lower Bending blade |
| MLA | Manual Length Adjustment of Blank Holder |
| SH | Oil Heater |
| SCDV | Blankholder Rotating tools |
| RC | Continuous Rotator |
| CLA | Tab bending unit |
| HPT2015 | Right hand Load / Unload table |
| R51 | Chiller |
Finance used Salvagnini equipment…
EB Machinery can now offer machine funding in partnership with a UK based finance company who understand the value and costs involved in the purchase and installation of used Salvagnini equipment.
