S4 –30 Auto load/unload Punching/shear – Ready for demo now!
S4 –30 Auto load/unload Punching/shear – Ready for demo now!

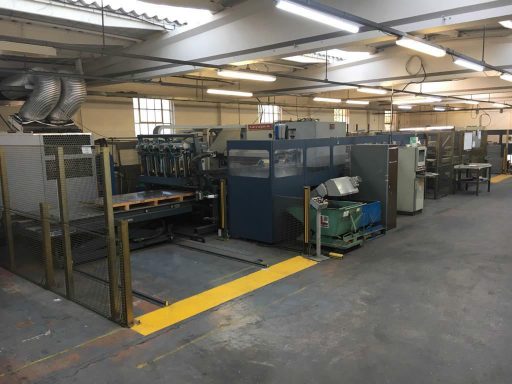

S4-30 year 2000, fully automatic floor to floor punching and shearing center. Lights out processing with twin loading and unloading tables refurbished by EB in 2013.
DUP Loader with both longitudinal and transverse TC auto loading tables IA automatic un-loader with longitudinal and transverse TL unloading tables H2 Punching head, fully re-sealed by EB Engineering UK Ltd. 400x400mm automatic shear 2x Auto index, 44 stations plus 2 stations embossing up/down. 1 complete set of tool holders supplied with the machine.
Windows control system, upgraded to 2013 windows 7 platform, upgraded software, Syscon control utilising Simulation, loading and stacking software.
EB will also re-seal the punching head again before shipping to the new customer to provide peace of mind.
Decommissioning , preparation for transport, Installation, training can be provided, along with offline programming computer.
Specification
S4-30 year 2000, fully automatic floor to floor punching and shearing center. Lights out processing with twin loading and unloading tables refurbished by EB in 2013
| Max length of incoming blank | 3000mm |
| Max width of the blank | 1500mm |
| Max thickness of material at 400 N/mm2 (m/s) | 3mm |
| Total system weight | Approx 30,000kg |
| Electrical rating | TBA |
| Water consumption | TAE-R101 Chiller |
| Hydraulic oil capacity | 400 litres |
| Total system weight | Approx. 18,000kg |
| Electrical rating | 40KW |
| Air consumption | 20 l/Min |
| Hydraulic oil capacity | 600 litres |
Key
| DUP15 | Automatic Sheet Feeder |
| TC30155F (2) | Twin Scissor tables for Feeding |
| S4.30 | Punching machine |
| H2 | 44 station punch head |
| EI09 | Small upwards embossing unit |
| BU31 | Large upwards embossing unit |
| CC | Shearing unit |
| SC115C | Small parts offload |
| IA3015 | Automatic Stacker |
| TC30155D+TL30155D | Twin Scissor tables for unloading |
