ARRIVING SOON!! Salvagnini P4.2516ABA Automated Panel Bender

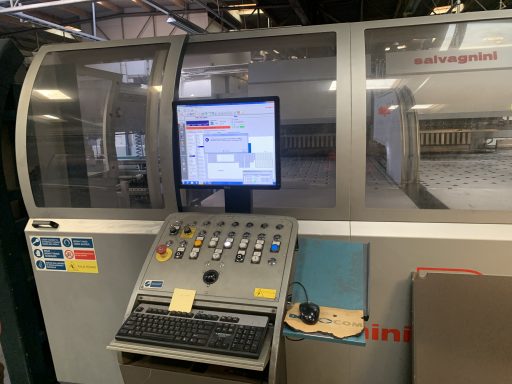

PCD Loader, SAP unloader – Fast ABA auto tool change, Option CUT! It will have fully refurbished tools and new system PC – coming in for refurbishment in August 23

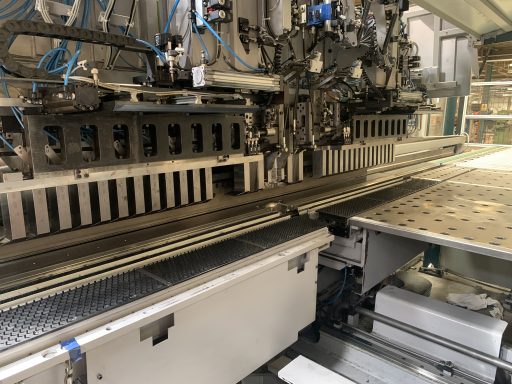

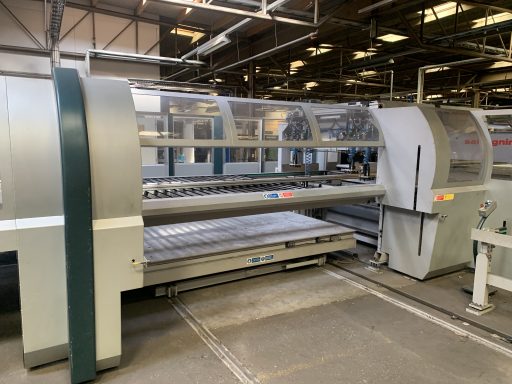

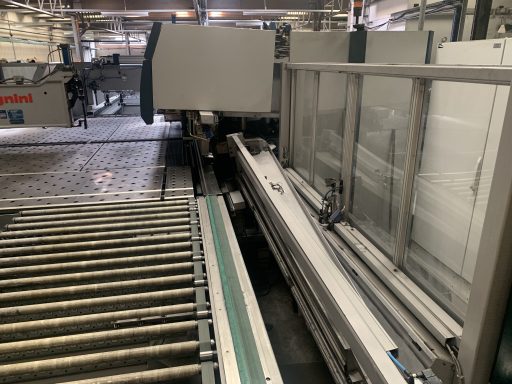

This panel bender is fed automatically from the left-hand side from a PCD auto loader; it is unloaded via a tilting stack table on the right-hand side. It has the benefit of ABA fully automatic tool change fitted, along with option P, CLA and the expensive Option Cut to allow guillotining of the blanks during the bending process!
Specification
| Max bending length | 2500mm |
| Max width of finished Panel | 1500mm |
| Max Diagonal of incoming sheet | 2750mm |
| Max length of incoming blank | 2800mm |
| Max width of the blank | 1510mm |
| Max bend height | 165mm |
| Max thickness of mild steel | 2.5mm |
| Max thickness of Stainless Steel | 1.5mm |
| Bending angles obtainable | -135 Deg to +135 Deg |
| Total system weight | Approx 23,000kg |
| Electrical rating | 35.75KW |
| Air consumption | 20 l/Min |
| Hydraulic oil capacity | 600 litres |
Configuration

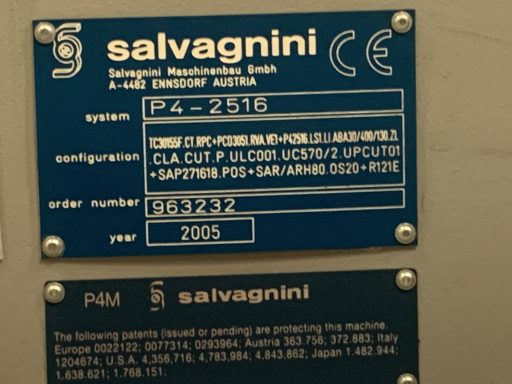

TC30155F.CT.RPC+PCD3015.RVA+P4.2516.LS1.LI.ABA30/400/130.CLA.CUT.PULC001.UC570/2UPCUT01+SAP271618.POS+R51E
Key
| TC30155F.CT.RPC | Scissor Table 3000 x 1500mm, 3 ton pack capacity |
| PCD3015.RVA | Automatic Sheet Feeder |
| P4.2516 | Servo-controlled Panel bender |
| LS1 | Upper Bending Blade (Heavy Duty) |
| LI | Lower Bending Blade (Heavy Duty) |
| ABA30/400/130 | Automatic Blank-holder Adjustment* |
| Cut/upcut01 | Automatic blank cutting/part removal option |
| CLA | Tab bending unit |
| P | Auxiliary tool for special profiles or reliefs |
| UC570 | 570mm of tab bending tooling |
| SAP271618.POS | Panel unloader and tilting table (allows multiple panel unloading prior to operator intervention) |
| R51E | Chiller |
