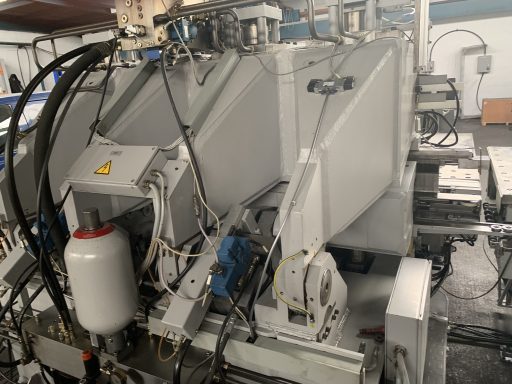

Salvagnini P4 2112 HPT Panel bender – Now fully refurbished and ready for demo in our showroom
Salvagnini P4 2112 HPT Panel bender – Now fully refurbished and ready for demo in our showroom
This machine is now in our factory and will fully refurbished by EB in May/June 2019 – refurbished MLA tooling , CLA and new LSA/ LIA blades, a new system computer will also be fitted.
Machine will come with full turnkey package as required by the new user, including EB warranty.
The P4 2112 is an excellent machine for those wanting a fast relaible machine that can bend up to 2.2m. It will be fully refurbished in our workshop in May/June2019, with new tooling and a new control system/computer and should be ready for demo in Oct 2019.
As with all of our machines, the tooling can be modified to suit your application. We have made special clip in tools or have reduced the size of the whole tool set to make extra narrow channels – send us a drawing and we’ll try to come up with a solution!
Specification
P4 with CLA and MLA Tooling (also SCDV end segments, fitted on later models).
Max bending length | 2200mm |
Max width of finished Panel | 1500mm |
Max Diagonal of incoming sheet | 2650mm |
Max length of incoming blank | 2500mm |
Max width of the blank | 1510mm |
Max bend height | 127mm |
Max thickness of mild steel | 2mm |
Max thickness of Stainless Steel | 1.5mm |
Bending angles obtainable | -125 Deg to +125 Deg |
Total system weight | Approx. 18,000kg |
Electrical rating | 40KW |
Air consumption | 20 l/Min |
Hydraulic oil capacity | 600 litres |
Key
MLA | Assisted tool change of Blankholder |
CLA | Tab Bending Unit |
HPT | Loading Table |
LIA | Lower Bending Blade |
LSA | Upper Bending Blade |
SCDV | Blankholder Rotating tools |
