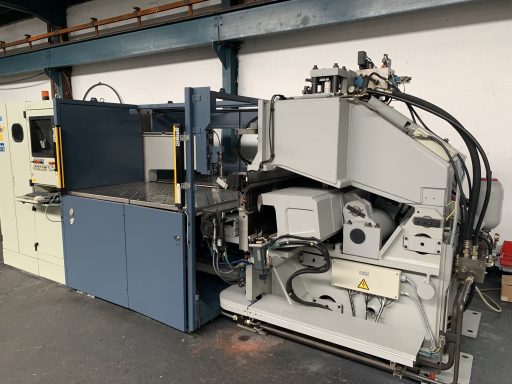

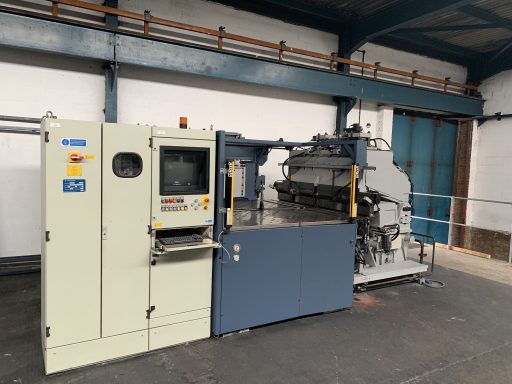

Salvagnini P2 Performer Panel Bender – Now fully refurbished and ready for demo in our showroom
Salvagnini P2 Performer Panel Bender – Now fully refurbished and ready for demo in our showroom
This machine has just arrived in our factory to replace the previous one which was sold last month!. It should be ready for Demo in Sept 2019 – It will have refurbished MLA tooling(with narrow in Z EB conversion), CLA and new LSA/ LIA blades, a new system computer will be fitted.
Machine will come with full turnkey package as required by the new user, including EB warranty.
The P2 is an excellent first machine for those wanting to get into the world of automated panel bending with limited budget and space. Ideal for small applications in particular as the parts are hand loaded It will be refurbished in our workshop by end of June 2019, with new tooling and a new control system/computer and should be ready for demo in Sept 2019.
As with all of our machines, the tooling can be modified to suit your application. We have made special clip in tools or have reduced the size of the whole tool set to make extra narrow channels – send us a drawing and we’ll try to come up with a solution!
Specification
P2 with CLA and MLA Tooling (also SCDV end segments, fitted on later models).
| Max bending length | 1950mm |
| Max width of finished Panel | 1500mm |
| Max Diagonal of incoming sheet | 2150mm |
| Max length of incoming blank | 2000mm |
| Max width of the blank | 1510mm |
| Max bend height | 127mm |
| Max thickness of mild steel | 2mm |
| Max thickness of Stainless Steel | 1.5mm |
| Bending angles obtainable | -125 Deg to +125 Deg |
| Total system weight | Approx. 12,000kg |
| Electrical rating | 27KW |
| Air consumption | 20 l/Min |
| Hydraulic oil capacity | 250 litres |
Key
| ALA | Assisted tool change of Blankholder |
| CLA | Tab Bending Unit |
| LIA | Lower Bending Blade |
| LSA | Upper Bending Blade |
| SCDV | Blankholder Rotating tools |
Finance used Salvagnini equipment…
EB Machinery can now offer machine funding in partnership with a UK based finance company who understand the value and costs involved in the purchase and installation of used Salvagnini equipment.
